BZones   a JAVA applet to visualize Brillouin zones
BZones   a JAVA applet to visualize Brillouin zones
Useful Stuff
PJ, 8 July 2009 (created 22 June 2009)
  • not tagging
  • no tags
I've done a lot of investigation on the topic, hopefully I've collected some useful sources.

Programs


At least 2 small programs are out that can visualize both Brillouin zone and Fermi sphere. Unfortunately both are not downloadable

  • Software from japanese researchers Hiroshi Nakano and Yoshitaka Sato
Materials Science and Engineering Vol 294–296 (2000) p542–547 (see [file:./Development%20of%203d%20visualization%20system.pdf])

  • BRIZ: a vizualization program for Brillouin zone – Fermi sphere configuration
Z. Kristallogr. Vol222 (2007) p718–721


(see [file:./zkri.2007.222.12.pdf])

Further Software


  • Unisoft can visualise 1st Brillouin zone


  • XCrySDen is a crystalline and molecular structure visualisation program able to
  1. switch between primitive and conventional cell settings
  2. change the number of the displayed unit cells, that is, display smaller or larger portions of a crystal
  3. display the crystal lattice
  4. visualise the Wigner-Seitz cell and Brillouin-zone
  5. k-path selection for band-structure calculations
  6. visualization of Fermi surfaces
Note: XCrysden just displays prior generated files so you need other software as well



Webarchives


The Bilbao Crystallographic Server links to excellent sites. Don't miss The interactive course on crystallography with lots of applets. Especially the CrystalOgraph Applet is impressive ;-)
Large programe archive ccp14


Videos

Video using the Visualization ToolKit
Brillouin zone morphing
Main sources
PJ, 8 July 2009 (created 22 June 2009)
  • not tagging
  • no tags

Brillouin zone


The given PDF sheets are not perfect, until today nobody knows the real source of them. So I used "Bradley ,Cracknell - Mathematical Theory of Symmetry" as reference. The two texts use different basis and reciprocal space vectors, besides the monoclinic lattice I used Bradley's definition. So you have to convert the coordinates if you want to compare.

Websites



Rhombohedral - hexagonal coordinates


It's more convenient to use hexagonal coordinates
http://www.uwgb.edu/DutchS/SYMMETRY/rhombo-lattice.htm
To convert coordinates you can use
http://qpeng.org/tools/r2h.html or use the formulas http://materials.binghamton.edu/444/part_I/sld048.htm
http://cst-www.nrl.navy.mil/lattice/
Voronoi Diagrams
PJ, 8 July 2009 (created 2 July 2009)
  • not tagging
  • no tags
Brillouin Zones or Wigner-Seitz cells are closely related to Veronoi diagrams There is a huge field in computing science and mathematics to develop Veronoi algorithm.

I found a JAVA Applet Voronoi3D on the web that draw my attention. The (screenshot) clearly shows a brillouin zone. With further research I found out that Voronoi algorithm are already implemented in MATLAB.

With MATLAB it was rather a easy task:

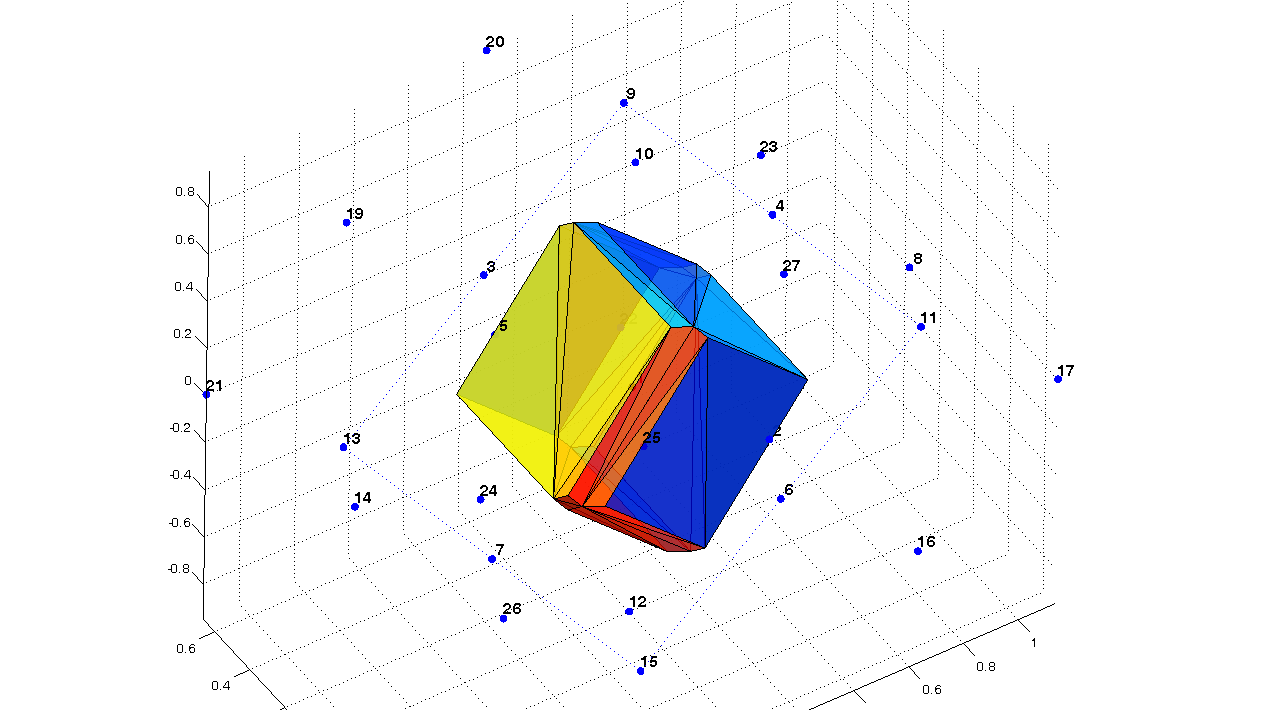

(Monoclinic basecentered BZ)

Use the MATLAB script

MATLAB script
PJ, 16 July 2009 (created 8 July 2009)
  • not tagging
  • no tags
%Based on QHULL DEMO
%http://www.mathworks.com/products/demos/shipping/matlab/qhulldemo.html

clear all;
close all;
clc;

disp('+++++++++++++++++++');
disp('  BRILLOUIN ZONES  ');
disp('(c)  Poms 2009     ');
disp('+++++++++++++++++++');

a=input(['\n','General triclinic lattice','\n','a: ']);
if isempty(a), a=1.2; end
b=input('b: ');
if isempty(b), b=2; end
c=input('c: ');
if isempty(c), c=1.5; end
alpha=input('alpha: ');
if isempty(alpha), alpha=72; end
beta=input('beta: ');
if isempty(beta), beta=80; end
gamma=input('gamma: ');
if isempty(gamma), gamma=110; end
animation=input('Make an animation and save the movie as gif yes/no: ','s');
if isempty(animation), animation='y'; end

alpha=alpha*pi/180;
beta=beta*pi/180;
gamma=gamma*pi/180;

w1 = cos(alpha) - cos(beta) * cos(gamma)/(sin(beta) * sin(gamma));
w2 = sin(gamma)^2 - cos(beta)^2 - cos(alpha)^2 ...
    + 2*cos(alpha) *cos(beta) * cos(gamma);
w2 = sqrt(w2) / (sin(beta) * sin(gamma));

T1 = [a, 0, 0];
T2 = [b * cos(gamma), b	* sin(gamma), 0];
T3 = [c * cos(beta), c * w1*sin(beta), c*w2*sin(beta)];

spat=cross(T1,T2)*T3';

G1=2*pi*cross(T2,T3)/spat;
G2=2*pi*cross(T3,T1)/spat;
G3=2*pi*cross(T1,T2)/spat;

X = zeros(125,3);

l=1;
for i=-2:2;
    for j=-2:2;
        for k=-2:2;
            X(l,:)=i*G1+j*G2+k*G3;
            l=l+1;
        end
    end
end


cla reset; hold on

% Compute Voronoi diagram.
[c,v] = voronoin(X);

nx = c(v{63},:);
tri = convhulln(nx);

% Plot the Voronoi diagram.

if (animation ~= 'y')
    fh=figure(1);
    plot3(X(:,1),X(:,2),X(:,3),'b.','markersize',10);
    for i = 1:size(tri,1)
        patch(nx(tri(i,:),1),nx(tri(i,:),2),nx(tri(i,:),3),i,'FaceAlpha',0.85);
    end
    % Modify the view.
    view(3);
    title('1st Brillouin zone');
    axis equal tight off  vis3d
    grid on;
    camzoom(2);
    rotate3d on
else
    fh=figure('Position',[10,10,400,300]);  %size of the gif!
    for i = 1:size(tri,1)
        patch(nx(tri(i,:),1),nx(tri(i,:),2),nx(tri(i,:),3),i,'FaceAlpha',0.85);
    end
    title('1st Brillouin zone');
    axis equal tight off vis3d
    camtarget([0,0,0]);
    loop=36;
    azimuth=360/loop*[0:loop-1];
    view(azimuth(1),30);
    drawnow;
    pause(0.1);
    mov=getframe(gcf);

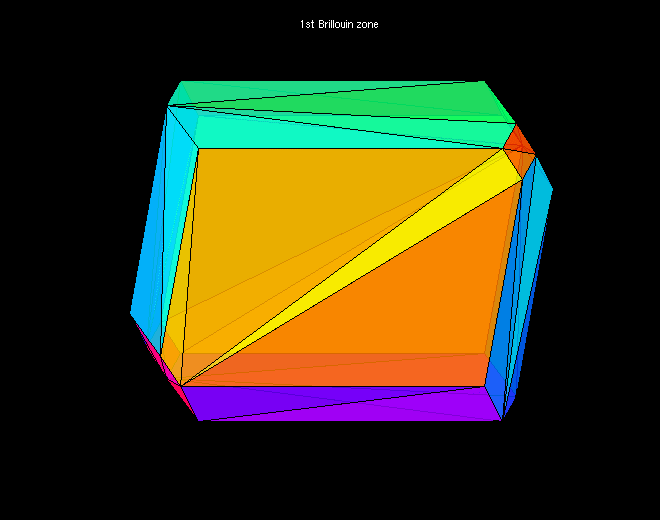

    gifname = 'animation.gif';
    I = frame2im(mov);
    [X, map] = rgb2ind(I, 128);
    imwrite(X, map, gifname, 'GIF', 'WriteMode', 'overwrite', 'DelayTime', 0, 'LoopCount', Inf);

    for k=2:loop
     view(azimuth(k),30);
      drawnow;
      pause(0.1);
      mov=getframe(gcf);
      I = frame2im(mov);
        [X, map] = rgb2ind(I, 128);
        imwrite(X, map, gifname, 'GIF', 'WriteMode', 'append', 'DelayTime', 0);
    end
end

brillouin_zones_matlab.m


<!--{{{-->
